Problem 9 :
Figure I shows the overall system for
filtering a continuous-time signal using a discrete time
filter. If Xc(jw) and H(exp(jw)) are as shown
in figure II, with 1/T=20kHz, sketch Xp(jw),
X(exp(jw)), Y(exp(jw)), Yp(jw) and Yc(jw).
Figure ( I )
![](Problem_Template_clip_image002.gif)

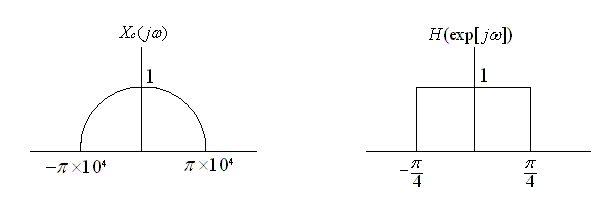

Figure ( II )
